IBM Makes Tiny 'Star Trek' Images Using Microscope, Individual Carbon Atoms


By: Miriam Kramer
Published: 05/03/2013 10:06 AM EDT on

The nanophysicists working at IBM appear to be Trekkies.

In honor of the iconic science fiction franchise's latest film "Star Trek: Into Darkness" — set for release on May 17 — IBM has unveiled amazing new photos crafted from the microscopic movements of single carbon atoms.

"Scientists used a microscope the size of a room to maneuver single atoms to form the shapes of the Enterprise, the Vulcan salute, the Star Trek logo, a U.S.S. Enterprise the height of a single nanometer, and an animation of the Star Trek logo," IBM officials said in a statement.

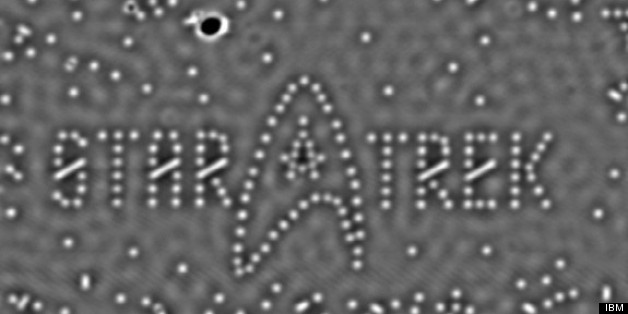

ibm atoms artScientists with IBM have crafted this Vulcan salute using single carbon atoms arranged with a powerful microscope.

Scientists used a scanning tunneling microscope — a 2-ton machine invented at IBM — to arrange and photograph the atoms. Engineers carefully dragged a sharp needle along a copper surface to attract the atoms and move them into place.

The "Star Trek" photos aren't the only pieces of "atom art" created by IBM this year. The technology company also produced the Guinness World Record-certified smallest stop-motion movie using these same methods.

That video, "A Boy and His Atom," shows a group of carbon atoms arranged in the shape of a boy dancing and jumping on a trampoline with a single atom beside him.

These artistic endeavors are part of a wider IBM data storage initiative. Single atoms are the smallest raw materials that can be used to store data. Investigating how to use atoms on various surfaces can help scientists understand how they can be used to store information in more efficient ways, according to IBM officials.

"Today, it takes roughly one million atoms to store a single bit of data on a computer or electronic device," IBM officials wrote on the company's website. "A bit is the basic unit of information in computing that can have only one of two values, one or zero. Eight bits form a byte. Recently, IBM Research announced it can now store that same bit of information in just 12 atoms."

ibm atom artNanophysicists working with IBM have created a Starship Enterprise using single atoms arranged with a powerful microscope.

A chip the size of a fingernail using the 12-atom bit could store all of the movies ever made, IBM officials said in a statement.

"Star Trek Into Darkness" is scheduled for nationwide release in the United States on May 17.

Follow Miriam Kramer on Twitter and Google+. Follow us on Twitter, Facebook and Google+. Original article on
